Bombardier · Super-mid · 9 seats

Challenger 3500

3,400 nautical miles at 470 knots, on a 69.2 ft span. Indicative charter rate $7,500 – $9,200 per flight hour; the shortest trip an operator will normally release it for costs about $13,000.

Published specification
ManufacturerBombardier
ClassSuper-mid
Passengers9
Range3,400 nm
Cruise470 kt
Length68.8 ft
Wingspan69.2 ft
Runway (sea level)4,835 ft

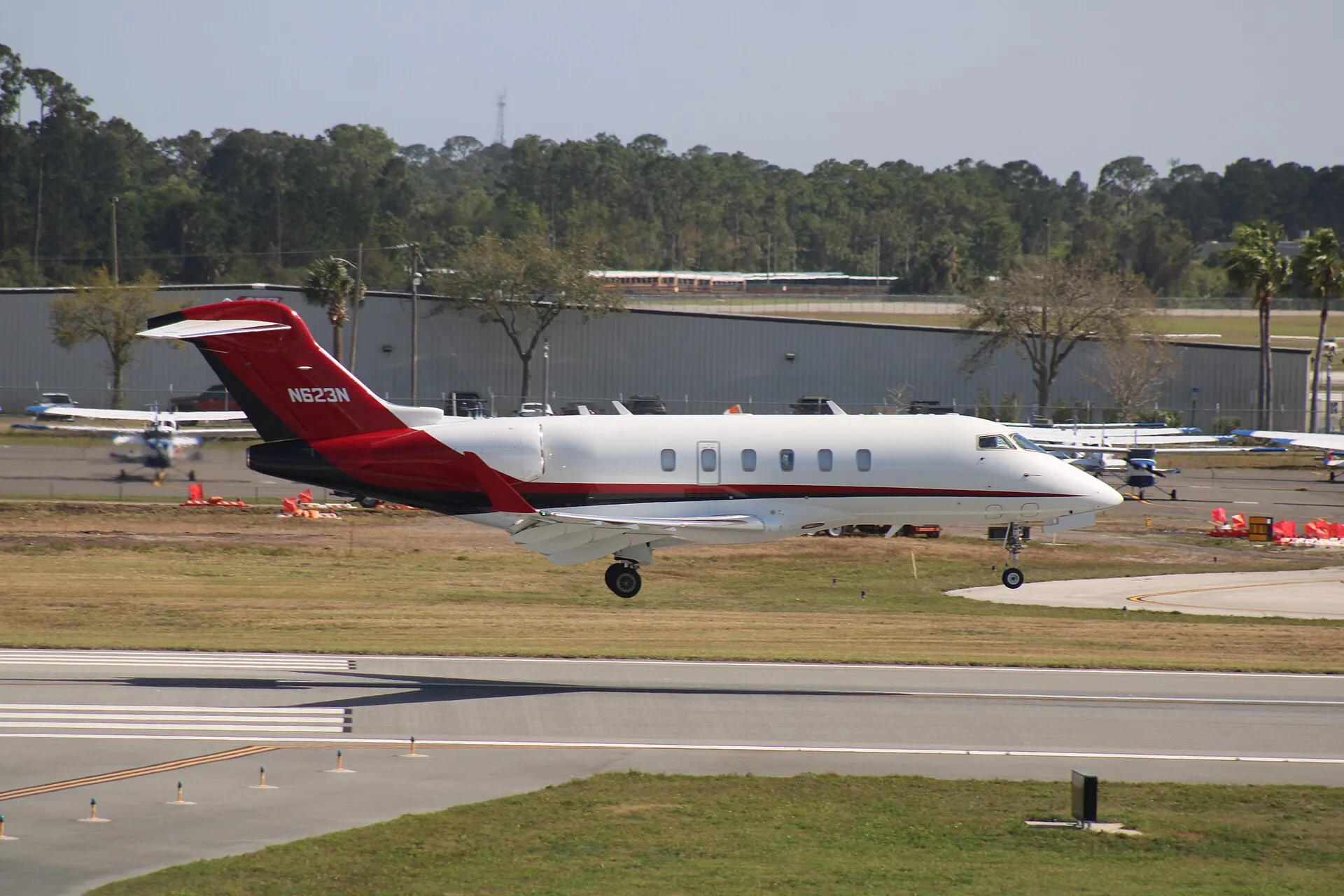

A Challenger 3500 in service, photographed from the side
Challenger 3500 Photograph by ZLEA · CC BY-SA 4.0
Global 7500 69.2 ft 68.8 ft long
Scale outline · 69.2 ft span · 68.8 ft long Dashed: Global 7500, same scale

Span and length are the manufacturer's published figures and are drawn true. The outline between those points is a generic planform for this configuration — it is a scale drawing, not a technical one.

You can stand up in it.

The cabin drawn to scale, with a 5.83 ft person — 5 ft 10 in, average US adult male height — standing in it. Cabin height is the single specification that most changes how a four-hour flight feels, and it is the one least often shown.

Cabin section · 7.2 ft wide · 6.1 ft high Figure at 5.83 ft
Cabin
Length28.6 ft
Width7.2 ft
Height 6.1 ft
Seats9
Stand upright yes

At 6.1 ft you walk the cabin upright.

Cabin dimensions are the manufacturer's published interior figures, measured at the widest and tallest point of the cabin — not at the seat, and not at the entrance.

Where the Challenger 3500 cannot go

Range is rarely the binding constraint on a business jet. Published field limitations are.

Fields excluded for the Challenger 3500
FieldRunway ElevationReason
KSQL San Carlos, CA 2,621 ft 5 ft Not permitted needs 4,835 ft at sea level; KSQL has 2,621 ft

Charter the Challenger 3500

Nearest fields it is cleared into, and the routes it is normally quoted on. Every figure comes from the same engine that answers the API.
